Wall hook generator

A screw-on wall hook sized to what it holds. Type how deep the hook is inside, the tip's height and the width; one or two countersunk screws.

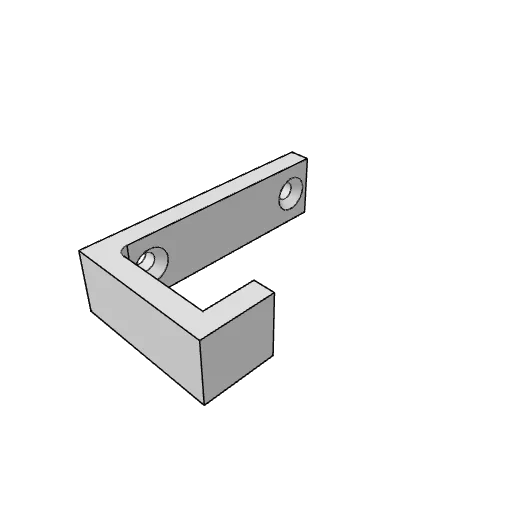

Wall hook generator: the part as it comes

How to make yours

  1. Set how deep the hook is inside: what it has to hold.
  2. Set the tip's height, so nothing slides off, and the width.
  3. Thicken the arm for heavy things, and pick your screw size.
  4. Download it as STL, 3MF or STEP, and print it.

What each slider does

Hook depth (inside) 10 to 100 mm
How deep the hook is inside, between the wall and the tip.
Back plate height 40 to 150 mm
How tall the back plate on the wall is.
Tip height 4 to 50 mm
How far the tip stands up above the arm.
Width 8 to 40 mm
How wide the hook is.
Arm thickness 3 to 10 mm
How thick the arm is. Thicker holds more weight.
Back plate thickness 4 to 10 mm
How thick the back plate is.
Screw diameter 3 to 5 mm
The diameter of your screws. The holes are countersunk for their heads.
Second screw on or off
Switches on a second screw hole lower on the plate.

Also called

wall hook, coat hook, key hook, towel hook, headphone hook, utility hook, screw hook, garage hook, custom hook, hook generator.
