Pipe clamp generator

A clamp that holds a pipe, tube, rod or cable bundle against a wall, a screw each side. Type the pipe's diameter; it fits with 0.2 mm to spare.

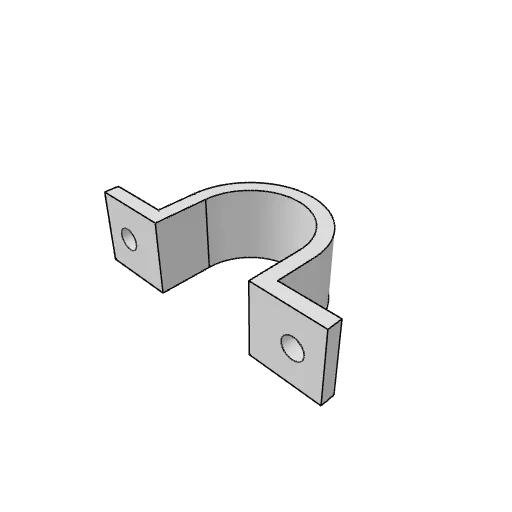

Pipe clamp generator: the part as it comes

How to make yours

  1. Measure your pipe, tube or rod and type its diameter.
  2. Set the strap thickness and the width.
  3. Set the flange length and the screw hole for your screws.
  4. Download it as STL, 3MF or STEP, print it, and screw it to the wall.

What each slider does

Pipe diameter 6 to 80 mm
The outside diameter of the pipe, tube or rod.
Strap thickness 2 to 6 mm
How thick the strap and the flanges are.
Flange length 8 to 25 mm
How far each flange reaches out from the strap.
Width 8 to 40 mm
How wide the clamp is along the pipe.
Screw hole 3 to 6 mm
The size of the screw holes.

Also called

pipe clamp, tube clamp, saddle clamp, conduit clamp, rod holder, pipe holder, pipe bracket, wall clamp, pipe clamp generator, tube holder.
