Hose adapter generator

Join a vacuum hose to a tool, or one hose to another. Type each end's diameter and length; tick an end that slides over a pipe instead of into a hose.

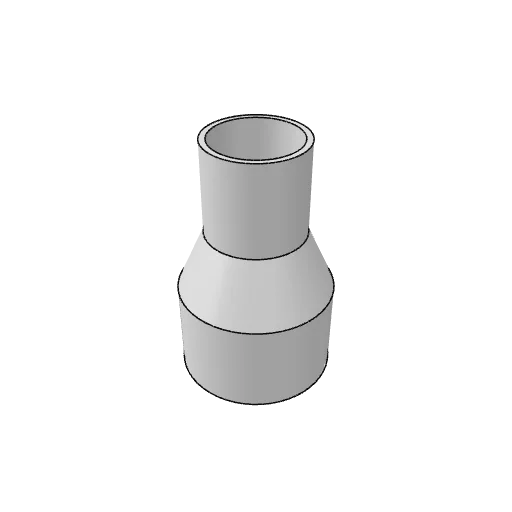

Hose adapter generator: the part as it comes

How to make yours

  1. Measure both things you want to join: a hose, a tool port, a pipe.
  2. Type each end's diameter. Tick "slides over" for an end that goes over a pipe instead of into a hose.
  3. Set how long each end is and how long the taper between them is.
  4. Download it as STL, 3MF or STEP, and print it.

What each slider does

End 1 diameter 10 to 120 mm
The diameter of the first end: its outside, or its inside when it slides over.
End 1 slides over (inside diameter) on or off
Ticked, the first end slides over a pipe or port and the number is its inside.
End 1 length 10 to 80 mm
How long the first end's sleeve is.
End 2 diameter 10 to 120 mm
The diameter of the second end, measured the same way.
End 2 slides over (inside diameter) on or off
Ticked, the second end slides over and the number is its inside.
End 2 length 10 to 80 mm
How long the second end's sleeve is.
Taper length 5 to 80 mm
How long the cone between the two ends is.
Wall 1.2 to 5 mm
How thick the adapter's wall is.

Also called

hose adapter, custom hose adapter, vacuum hose adapter, dust collection adapter, shop vacuum adapter, hose reducer, pipe adapter, dust extraction fitting, hose connector.
