Gridfinity wrench bin generator

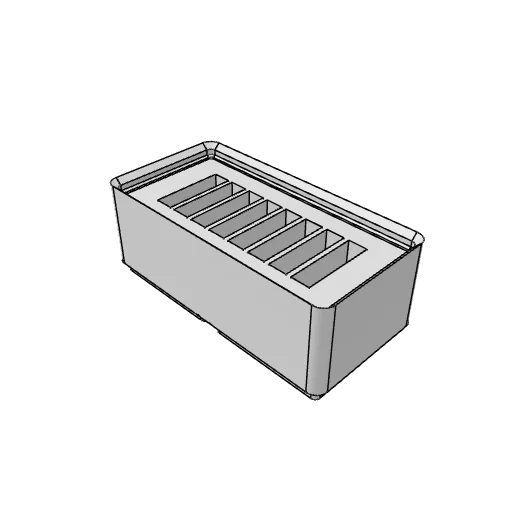

A Gridfinity bin with a slot for each wrench, standing head down. Set the head's size, how many along and how many rows.
How to make yours
- Set the wrench's thickness and width; each slot is a little bigger so it drops in.
- Set how many wrenches along and how many rows; the bin grows one 42 mm square at a time to hold them.
- Set how deep each slot is, and tick on magnet holes if your baseplate has magnets.
- Download it as STL, 3MF or STEP, and print it.
What each slider does
- Wrench thickness 3 to 12 mm
- How thick the wrench is at its head.
- Head width 12 to 50 mm
- How wide the wrench head is, across.
- Wrenches along 1 to 16
- How many wrenches sit side by side in a row.
- Rows 1 to 3
- How many rows of pockets there are, front to back.
- Pocket depth 10 to 50 mm
- How deep each wrench sits; the bin's height follows in 7 mm Gridfinity units.
- Magnet holes on or off
- Holes under each foot for magnets that hold the bin to a magnetic baseplate.
