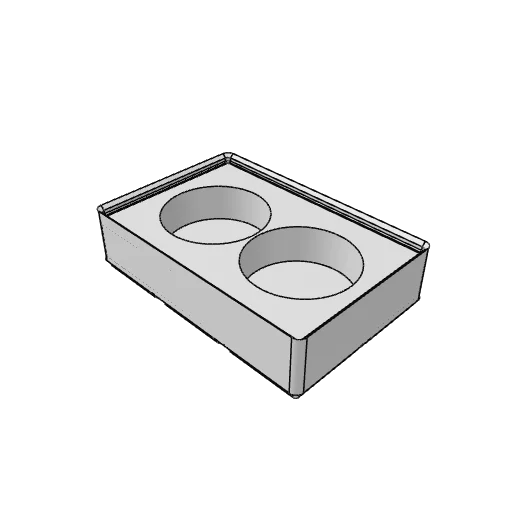

Gridfinity tape roll bin generator
A Gridfinity bin with a round pocket for each roll of tape lying flat: electrical, washi, masking. Set the roll's diameter and how many.
How to make yours
- Set the roll's diameter; each pocket is 1.5 mm wider so it drops in.
- Set how many rolls along and how many rows; the bin grows one 42 mm square at a time to hold them.
- Set how deep each pocket is, and tick on magnet holes if your baseplate has magnets.
- Download it as STL, 3MF or STEP, and print it.
What each slider does
- Roll diameter 20 to 78 mm
- How wide the roll of tape is, across.
- Rolls along 1 to 4
- How many rolls sit side by side in a row.
- Rows 1 to 4
- How many rows of pockets there are, front to back.
- Pocket depth 5 to 40 mm
- How deep each roll sits; the bin's height follows in 7 mm Gridfinity units.
- Magnet holes on or off
- Holes under each foot for magnets that hold the bin to a magnetic baseplate.
Also called
gridfinity tape holder, tape roll holder, electrical tape holder, washi tape storage, tape organizer, gridfinity bin.
Gridfinity by Zack Freedman (MIT)
