Gridfinity tape measure bin generator

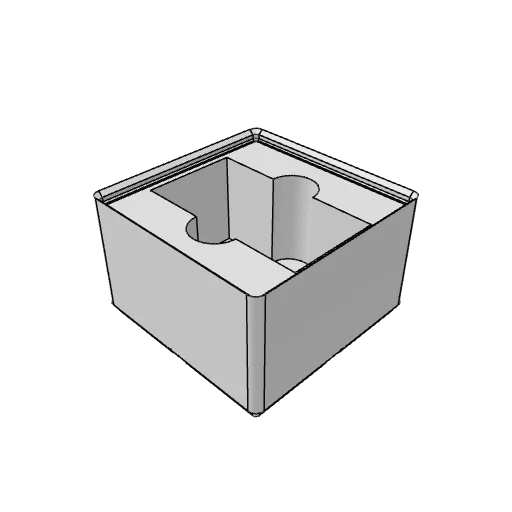

A Gridfinity bin with a pocket a tape measure stands in on its side, and a finger dip each side. Set its length and thickness.
How to make yours
- Measure the tape measure: its length and its widest point.
- Set how deep it should sit; the bin grows one 42 mm square at a time around it.
- A round finger dip on each long side lets you lift it out. Tick on magnet holes if your baseplate has magnets.
- Download it as STL, 3MF or STEP, and print it.
What each slider does
- Tape measure length 40 to 120 mm
- How long the tape measure is, end to end; the pocket is 1 mm longer.
- Tape measure width 20 to 80 mm
- How wide the tape measure is at its widest; the pocket is 1 mm wider.
- Pocket depth 10 to 60 mm
- How deep the tape measure sits; the bin's height follows in 7 mm Gridfinity units.
- Magnet holes on or off
- Holes under each foot for magnets that hold the bin to a magnetic baseplate.
Also called
gridfinity tape measure holder, tape measure holder, tape measure storage, measuring tape organizer, tool organizer, gridfinity tool holder.
Gridfinity by Zack Freedman (MIT)
