Gridfinity spray can bin generator

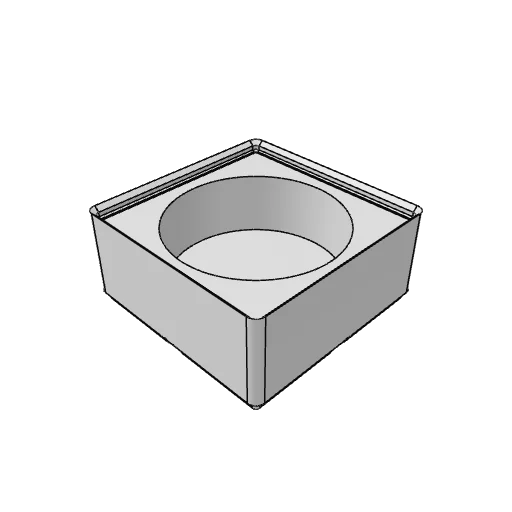

A Gridfinity bin with a round pocket for a spray can, or a row of them: paint, lubricant, cleaner. Set the can's diameter and how many.
How to make yours
- Set the can's diameter; each pocket is 1.5 mm wider so it drops in.
- Set how many cans along and how many rows; the bin grows one 42 mm square at a time to hold them.
- Set how deep each pocket is, and tick on magnet holes if your baseplate has magnets.
- Download it as STL, 3MF or STEP, and print it.
What each slider does
- Can diameter 40 to 78 mm
- How wide the can is, across.
- Cans along 1 to 3
- How many cans sit side by side in a row.
- Rows 1 to 3
- How many rows of pockets there are, front to back.
- Pocket depth 10 to 60 mm
- How deep each can sits; the bin's height follows in 7 mm Gridfinity units.
- Magnet holes on or off
- Holes under each foot for magnets that hold the bin to a magnetic baseplate.
Also called
gridfinity spray can holder, spray can holder, spray paint holder, aerosol can holder, workshop organizer, gridfinity bin.
Gridfinity by Zack Freedman (MIT)
