Gridfinity socket bin generator

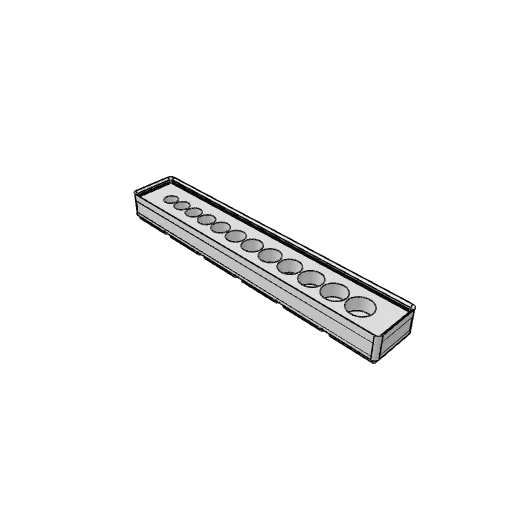

A Gridfinity bin with 12 holes for a 1/4 in drive socket set, standing drive end up, growing from the smallest socket to the largest.

How to make yours

Set the smallest and the largest socket; the 12 holes grow evenly between them, in one row.
Set the clearance: how much wider each hole is than its socket.
Set how deep the holes are, and tick on magnet holes if your baseplate has magnets.
Download it as STL, 3MF or STEP, and print it.

Smallest socket, outside 8 to 14 mm: How wide the smallest socket is outside, the first hole.
Largest socket, outside 14 to 22 mm: How wide the largest socket is outside, the last hole.
Clearance 0.2 to 1.5 mm: How much wider each hole is than the socket it holds.
Pocket depth 6 to 30 mm: How deep each socket sits; the bin's height follows in 7 mm Gridfinity units.
Magnet holes on or off: Holes under each foot for magnets that hold the bin to a magnetic baseplate.
