Gridfinity screwdriver bin generator

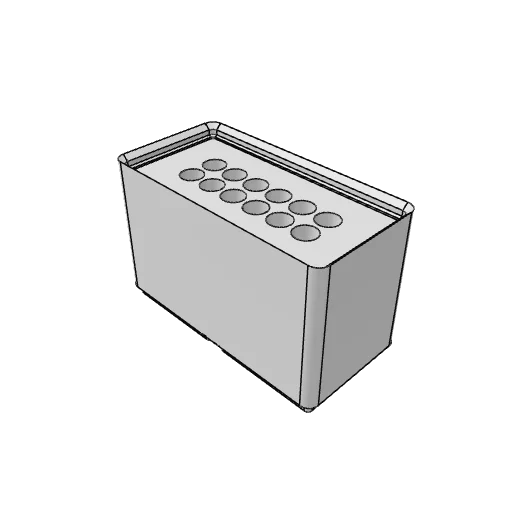

A Gridfinity bin that stands screwdrivers up, blade down, one hole each. Set the shaft's diameter, how many and how deep.
How to make yours
- Set the screwdriver's diameter; each pocket is 0.8 mm wider so it drops in.
- Set how many screwdrivers along and how many rows; the bin grows one 42 mm square at a time to hold them.
- Set how deep each pocket is, and tick on magnet holes if your baseplate has magnets.
- Download it as STL, 3MF or STEP, and print it.
What each slider does
- Shaft diameter 3 to 16 mm
- How wide the screwdriver's shaft is; it stands blade down with the handle on top.
- Screwdrivers along 1 to 10
- How many screwdrivers sit side by side in a row.
- Rows 1 to 6
- How many rows of pockets there are, front to back.
- Pocket depth 10 to 60 mm
- How deep each screwdriver sits; the bin's height follows in 7 mm Gridfinity units.
- Magnet holes on or off
- Holes under each foot for magnets that hold the bin to a magnetic baseplate.
Also called
gridfinity screwdriver holder, screwdriver holder, screwdriver organizer, screwdriver rack, tool organizer, gridfinity tool holder.
Gridfinity by Zack Freedman (MIT)
