Gridfinity phone bin generator

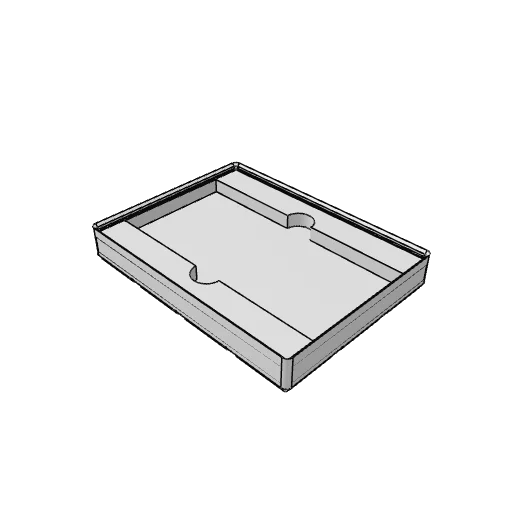

A Gridfinity bin with a pocket a phone lies in, and a finger dip each side to lift it out. Set its length and width.
How to make yours
- Measure the phone: its length and its widest point.
- Set how deep it should sit; the bin grows one 42 mm square at a time around it.
- A round finger dip on each long side lets you lift it out. Tick on magnet holes if your baseplate has magnets.
- Download it as STL, 3MF or STEP, and print it.
What each slider does
- Phone length 100 to 240 mm
- How long the phone is, end to end; the pocket is 1 mm longer.
- Phone width 50 to 120 mm
- How wide the phone is at its widest; the pocket is 1 mm wider.
- Pocket depth 5 to 30 mm
- How deep the phone sits; the bin's height follows in 7 mm Gridfinity units.
- Magnet holes on or off
- Holes under each foot for magnets that hold the bin to a magnetic baseplate.
Also called
gridfinity phone holder, phone holder, phone tray, phone storage, desk organizer, gridfinity bin.
Gridfinity by Zack Freedman (MIT)
