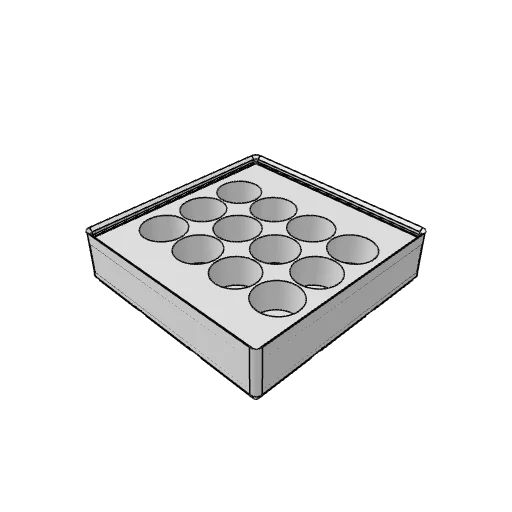

Gridfinity paint bottle bin generator
A Gridfinity bin for miniature paints: dropper bottles or paint pots, each in its own round pocket. Set the diameter and how many.
How to make yours
- Set the bottle's diameter; each pocket is 1 mm wider so it drops in.
- Set how many bottles along and how many rows; the bin grows one 42 mm square at a time to hold them.
- Set how deep each pocket is, and tick on magnet holes if your baseplate has magnets.
- Download it as STL, 3MF or STEP, and print it.
What each slider does
- Bottle diameter (dropper 25, pot 34) 15 to 40 mm
- How wide the bottle or pot is, across.
- Bottles along 1 to 8
- How many bottles sit side by side in a row.
- Rows 1 to 6
- How many rows of pockets there are, front to back.
- Pocket depth 8 to 45 mm
- How deep each bottle sits; the bin's height follows in 7 mm Gridfinity units.
- Magnet holes on or off
- Holes under each foot for magnets that hold the bin to a magnetic baseplate.
Also called
gridfinity paint holder, miniature paint rack, paint bottle holder, dropper bottle holder, paint pot organizer, hobby paint storage.
Gridfinity by Zack Freedman (MIT)
