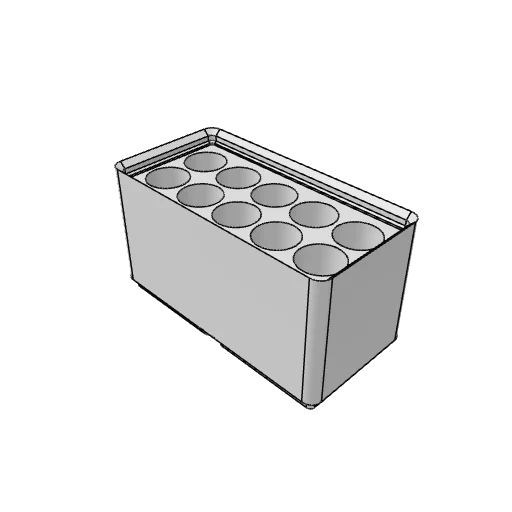

Gridfinity marker bin generator
A Gridfinity bin that holds markers upright: permanent markers, paint markers, whiteboard markers. Set the diameter and how many.
How to make yours
- Set the marker's diameter; each pocket is 0.8 mm wider so it drops in.
- Set how many markers along and how many rows; the bin grows one 42 mm square at a time to hold them.
- Set how deep each pocket is, and tick on magnet holes if your baseplate has magnets.
- Download it as STL, 3MF or STEP, and print it.
What each slider does
- Marker diameter 10 to 24 mm
- How wide the marker is, across its cap.
- Markers along 1 to 10
- How many markers sit side by side in a row.
- Rows 1 to 6
- How many rows of pockets there are, front to back.
- Pocket depth 10 to 60 mm
- How deep each marker sits; the bin's height follows in 7 mm Gridfinity units.
- Magnet holes on or off
- Holes under each foot for magnets that hold the bin to a magnetic baseplate.
Also called
gridfinity marker holder, marker holder, marker organizer, paint marker holder, whiteboard marker holder, gridfinity pen holder.
Gridfinity by Zack Freedman (MIT)
