Gridfinity hex key bin generator

A Gridfinity bin with one hole for each key of a metric hex key (Allen key) set: 1.5, 2, 2.5, 3, 4, 5, 6, 8 and 10 mm, in a row from small to large, the keys standing up.

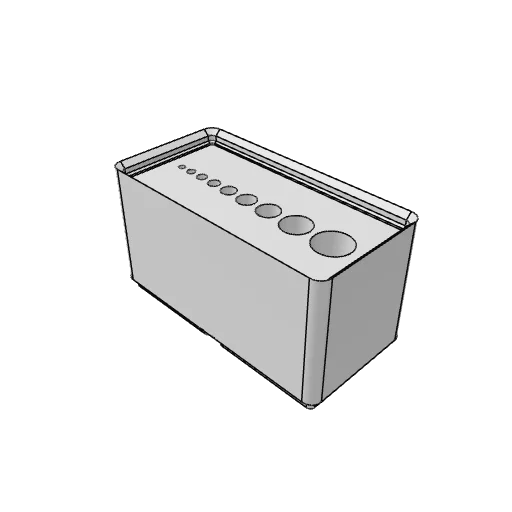

Gridfinity hex key bin generator: the part as it comes

How to make yours

  1. The nine holes fit a metric set: 1.5, 2, 2.5, 3, 4, 5, 6, 8 and 10 mm keys, in that order.
  2. Set the clearance: how much wider each hole is than its key across the corners.
  3. Set how deep the keys stand, and tick on magnet holes if your baseplate has magnets.
  4. Download it as STL, 3MF or STEP, and print it.

What each slider does

Clearance 0.2 to 1.5 mm
How much wider each hole is than its key measures across the corners.
Pocket depth 10 to 60 mm
How deep each key stands in its hole; the bin's height follows in 7 mm Gridfinity units.
Magnet holes on or off
Holes under each foot for magnets that hold the bin to a magnetic baseplate.

Also called

gridfinity hex key holder, gridfinity allen key holder, allen key holder, hex key organizer, allen wrench holder, metric hex key stand, gridfinity tool holder.

Gridfinity by Zack Freedman (MIT)
