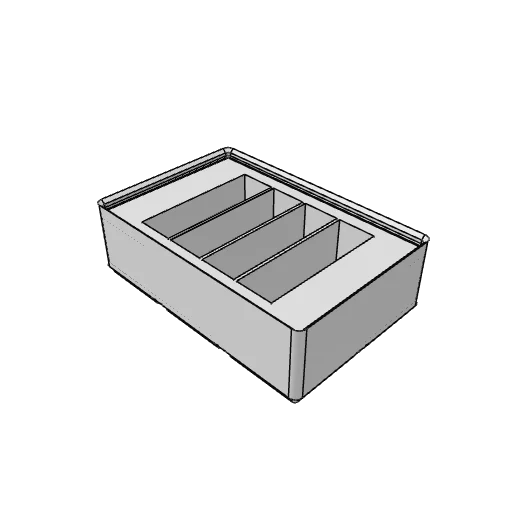

Gridfinity card deck bin generator
A Gridfinity bin with a pocket for each deck of cards, standing on its edge: playing cards, trading cards, game cards.
How to make yours
- Set the deck's thickness and width; each slot is a little bigger so it drops in.
- Set how many decks along and how many rows; the bin grows one 42 mm square at a time to hold them.
- Set how deep each slot is, and tick on magnet holes if your baseplate has magnets.
- Download it as STL, 3MF or STEP, and print it.
What each slider does
- Deck thickness 8 to 40 mm
- How thick the deck of cards is.
- Card width (poker 63.5) 40 to 95 mm
- How wide one card is, its short side.
- Decks along 1 to 10
- How many decks sit side by side in a row.
- Rows 1 to 3
- How many rows of pockets there are, front to back.
- Pocket depth 10 to 60 mm
- How deep each deck sits; the bin's height follows in 7 mm Gridfinity units.
- Magnet holes on or off
- Holes under each foot for magnets that hold the bin to a magnetic baseplate.
Also called
gridfinity card deck holder, card deck holder, deck box organizer, playing card storage, trading card holder, board game organizer.
Gridfinity by Zack Freedman (MIT)
