Gridfinity blade fuse bin generator

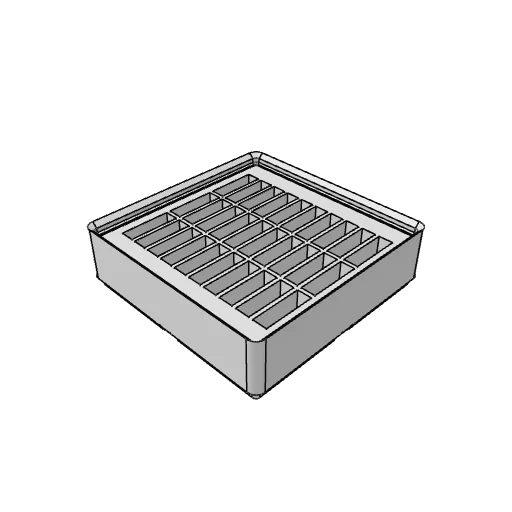

A Gridfinity bin with a slot for each blade fuse (standard, mini), standing legs down. Set the fuse's size and how many.
How to make yours
- Set the fuse's thickness and width; each slot is a little bigger so it drops in.
- Set how many fuses along and how many rows; the bin grows one 42 mm square at a time to hold them.
- Set how deep each slot is, and tick on magnet holes if your baseplate has magnets.
- Download it as STL, 3MF or STEP, and print it.
What each slider does
- Fuse thickness (standard 5.1, mini 3.6) 3 to 8 mm
- How thick the fuse is.
- Fuse width (standard 19.1, mini 10.9) 8 to 30 mm
- How wide the fuse is, side to side.
- Fuses along 1 to 20
- How many fuses sit side by side in a row.
- Rows 1 to 3
- How many rows of pockets there are, front to back.
- Pocket depth 5 to 20 mm
- How deep each fuse sits; the bin's height follows in 7 mm Gridfinity units.
- Magnet holes on or off
- Holes under each foot for magnets that hold the bin to a magnetic baseplate.
Also called
gridfinity fuse holder, blade fuse holder, car fuse organizer, automotive fuse storage, mini fuse holder, fuse box organizer.
Gridfinity by Zack Freedman (MIT)
