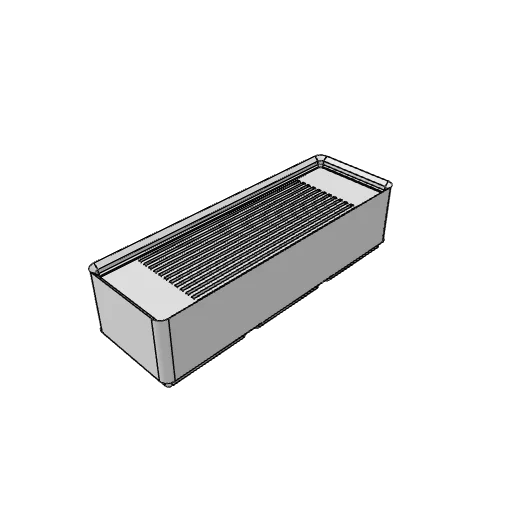

Gridfinity bank card bin generator
A Gridfinity bin with a slot for each bank card, gift card, key card or ID card, standing on its long edge. Set how many and how deep.
How to make yours
- Set the card's thickness and width; each slot is a little bigger so it drops in.
- Set how many cards along and how many rows; the bin grows one 42 mm square at a time to hold them.
- Set how deep each slot is, and tick on magnet holes if your baseplate has magnets.
- Download it as STL, 3MF or STEP, and print it.
What each slider does
- Card thickness (bank card 0.76) 0.5 to 3 mm
- How thick the card is.
- Card width (bank card 85.6) 50 to 95 mm
- How wide the card is along the edge it stands on.
- Cards along 1 to 20
- How many cards sit side by side in a row.
- Rows 1 to 2
- How many rows of pockets there are, front to back.
- Pocket depth 8 to 40 mm
- How deep each card sits; the bin's height follows in 7 mm Gridfinity units.
- Magnet holes on or off
- Holes under each foot for magnets that hold the bin to a magnetic baseplate.
Also called
gridfinity card holder, credit card holder, gift card organizer, key card holder, id card storage, business card holder.
Gridfinity by Zack Freedman (MIT)
