Gridfinity 9V battery bin generator

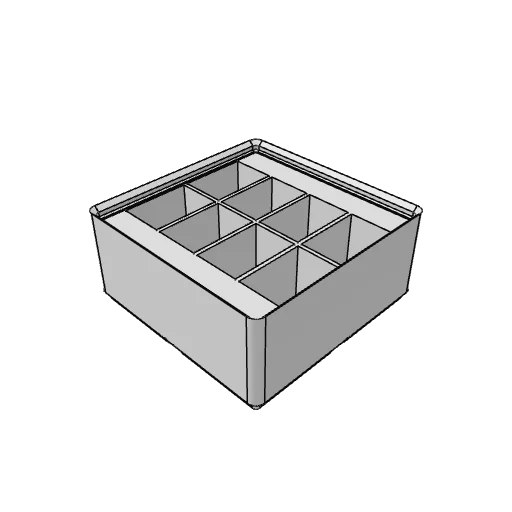

A Gridfinity bin with a pocket for each 9V battery, standing terminals up. Set how many along and how many rows.
How to make yours
- Set the battery's thickness and width; each slot is a little bigger so it drops in.
- Set how many batteries along and how many rows; the bin grows one 42 mm square at a time to hold them.
- Set how deep each slot is, and tick on magnet holes if your baseplate has magnets.
- Download it as STL, 3MF or STEP, and print it.
What each slider does
- Battery thickness (9V 17.5) 14 to 22 mm
- How thick the battery is, its short side.
- Battery width (9V 26.5) 22 to 32 mm
- How wide the battery is, its long side.
- Batteries along 1 to 12
- How many batteries sit side by side in a row.
- Rows 1 to 4
- How many rows of pockets there are, front to back.
- Pocket depth 10 to 45 mm
- How deep each battery sits; the bin's height follows in 7 mm Gridfinity units.
- Magnet holes on or off
- Holes under each foot for magnets that hold the bin to a magnetic baseplate.
Also called
gridfinity 9v battery holder, 9v battery holder, 9 volt battery organizer, battery storage, gridfinity battery bin, battery organizer.
Gridfinity by Zack Freedman (MIT)
