Gridfinity 18650 battery bin generator

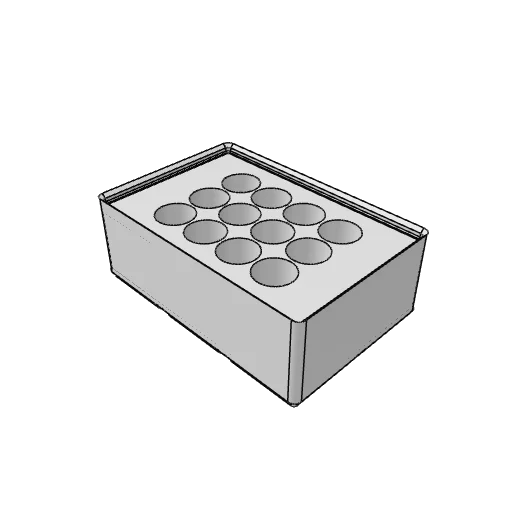

A Gridfinity bin for 18650 or 21700 lithium cells standing up, one round pocket each. Say how many along and how many rows.
How to make yours
- Set the cell's diameter; each pocket is 0.6 mm wider so it drops in.
- Set how many cells along and how many rows; the bin grows one 42 mm square at a time to hold them.
- Set how deep each pocket is, and tick on magnet holes if your baseplate has magnets.
- Download it as STL, 3MF or STEP, and print it.
What each slider does
- Cell diameter (18650 18.5, 21700 21.5) 16 to 23 mm
- How wide the cell is, across.
- Cells along 1 to 10
- How many cells sit side by side in a row.
- Rows 1 to 6
- How many rows of pockets there are, front to back.
- Pocket depth 10 to 60 mm
- How deep each cell sits; the bin's height follows in 7 mm Gridfinity units.
- Magnet holes on or off
- Holes under each foot for magnets that hold the bin to a magnetic baseplate.
Also called
gridfinity 18650 holder, 18650 battery holder, 18650 storage, 21700 battery holder, lithium cell organizer, gridfinity battery bin.
Gridfinity by Zack Freedman (MIT)
