Box with hinged lid

A box, a lid and a hinge pin. Press play and the lid opens to 110° and shuts.

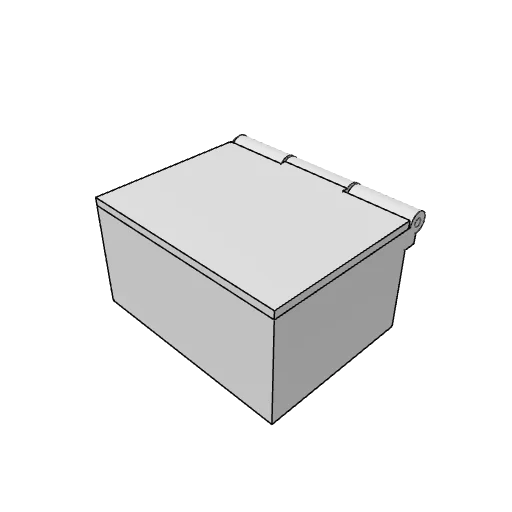

Box with hinged lid: the part as it comes

How to make yours

  1. Turn it around in the 3D view to see how the parts fit together.
  2. Press Make it mine: a copy of your own opens in Assembly, with every part and joint.
  3. Press play on its Motion step to watch it move.
  4. In Assembly, pull it apart with Explode, read its parts list, or export it as STEP.

Also called

hinged box, box with hinge, hinged lid box, small storage box, hinge pin box.
